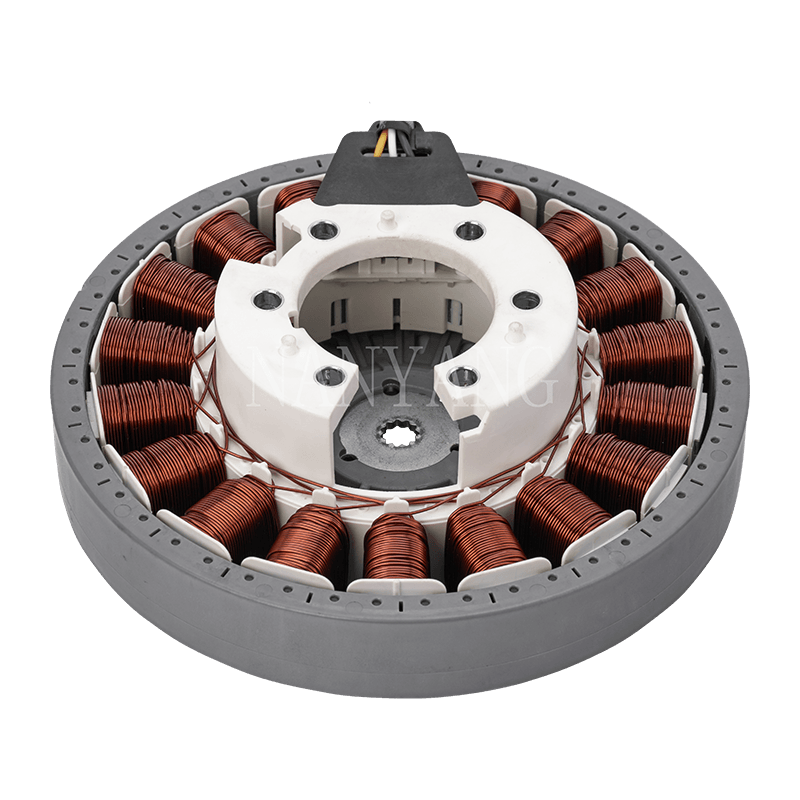

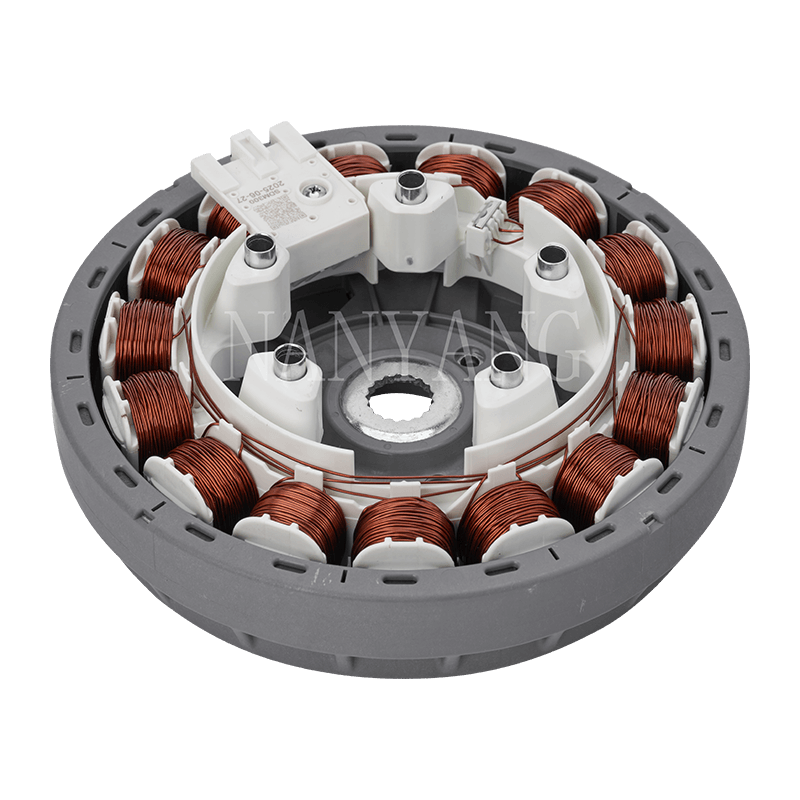

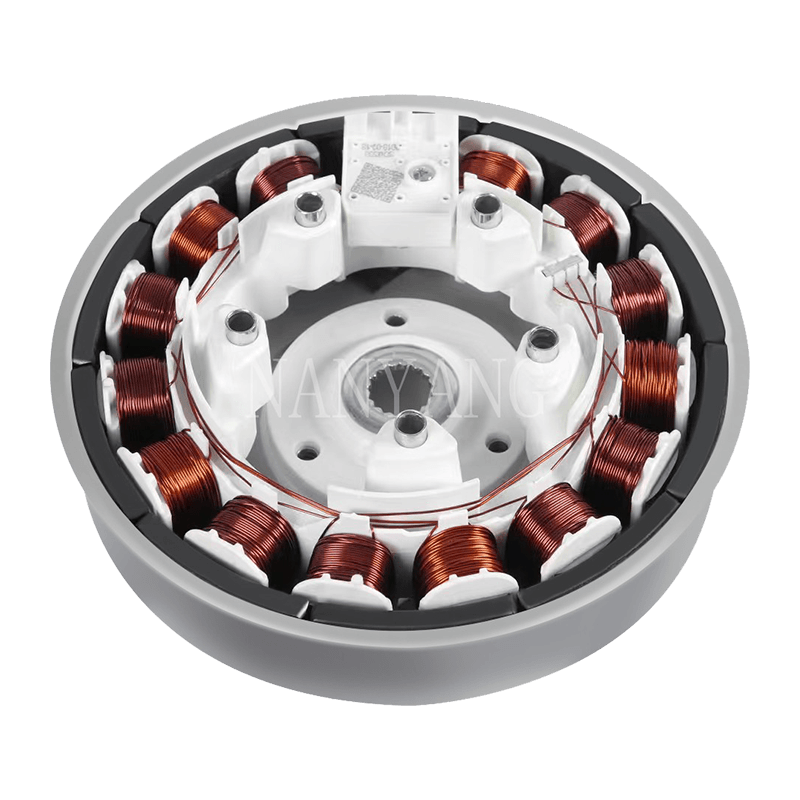

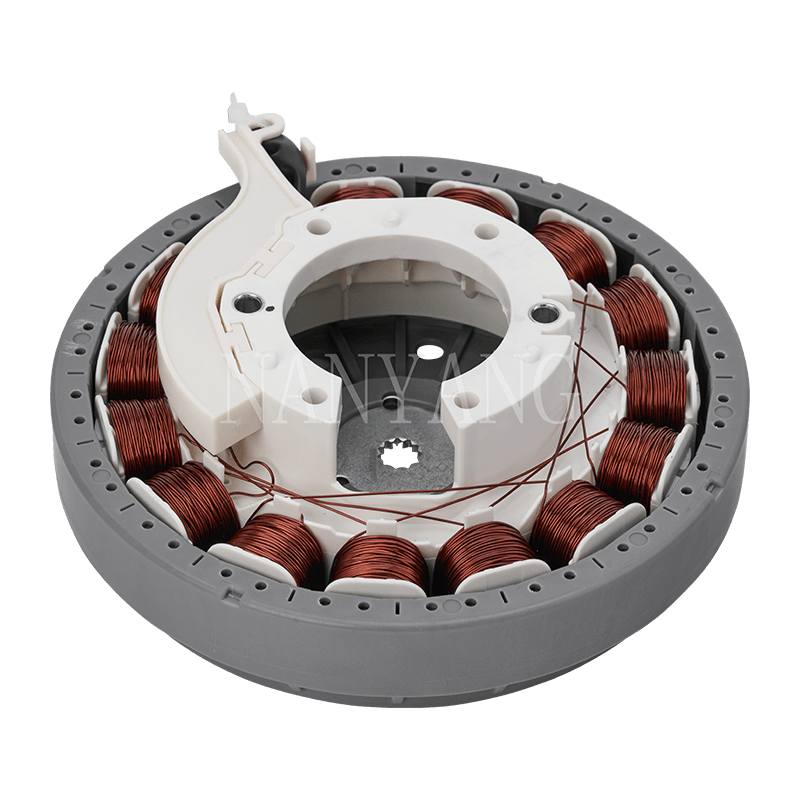

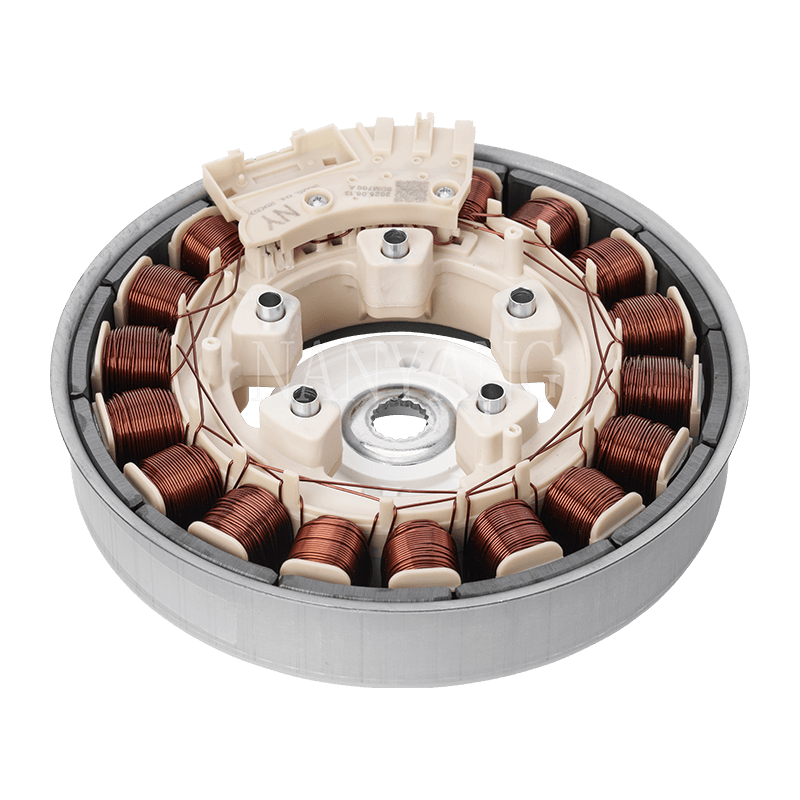

DDM motors for top loading washing machines with higher motor efficiency (above 80%) for less energy,water and electricity.
DDM motors for top loading washing machines with higher motor efficiency (above 80%) for less energy,water and electricity.
It is widely used in various transmission machinery industries of washing machines.
| Item | DDM Motor | ||||
| Driving Mode | Vertical direct drive | ||||
| Voltage | 310VDC | ||||
| Power | 0~3/5 HP | ||||
| Stator Solts | 15S | ||||
| Rotor Poles | 20P | ||||
| Motor Efficiency | Wash | ≥75% | |||
| Spin | ≥80% | ||||
| Torque | Wash | 5.0~9.5N.m | |||
| Spin | 6.0N.m | ||||
| Speed Range | 0~1000rpm | ||||
| Structure | Iron/PP | ||||
| Application | 6~25kg | ||||
| Bearing | 6202/6201 | ||||
| Rotar Materia | PP/Iron/BMC | ||||
| Max External Dimension | 188/216.2mm | ||||
Nanyang Motor provides high efficiency, low-noise, low-vibration and systematic solutions.
