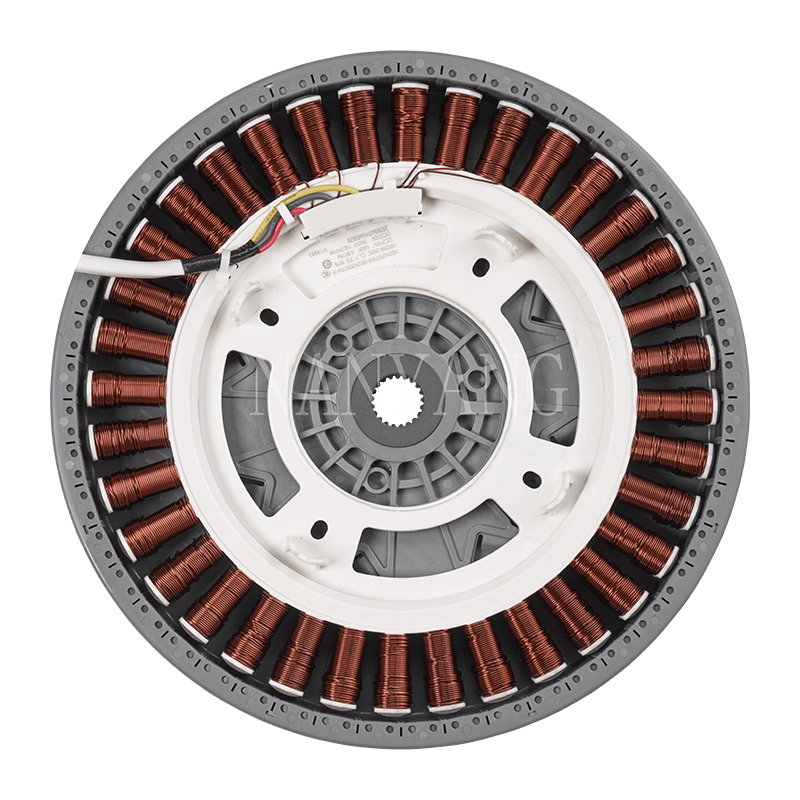

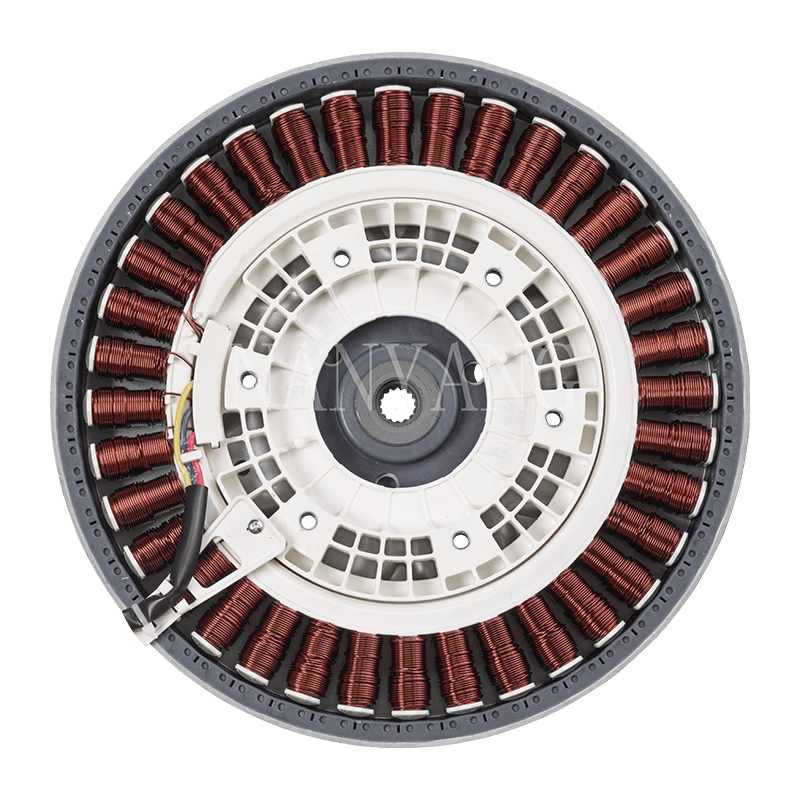

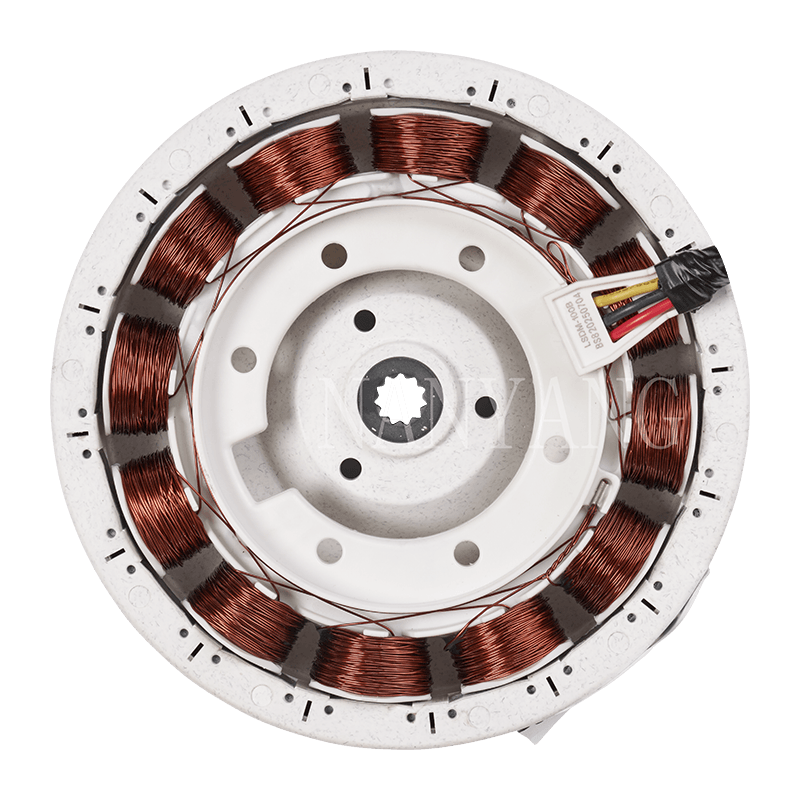

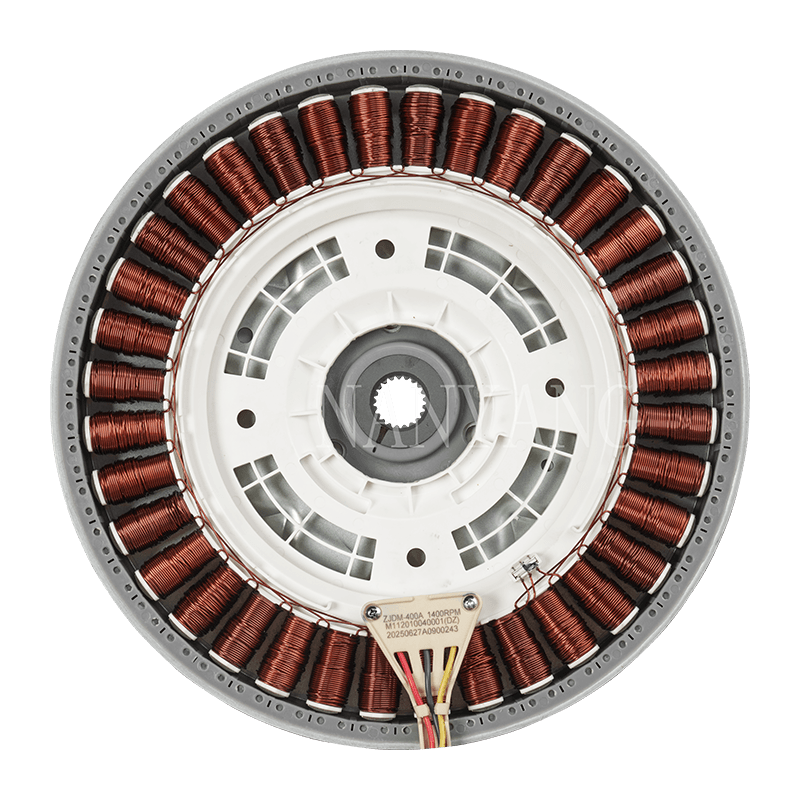

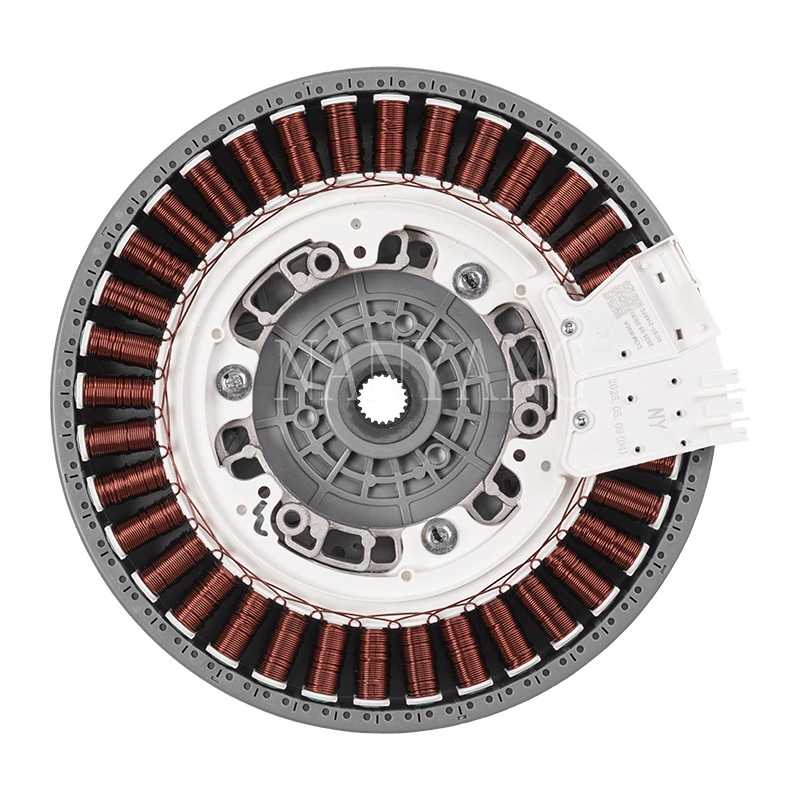

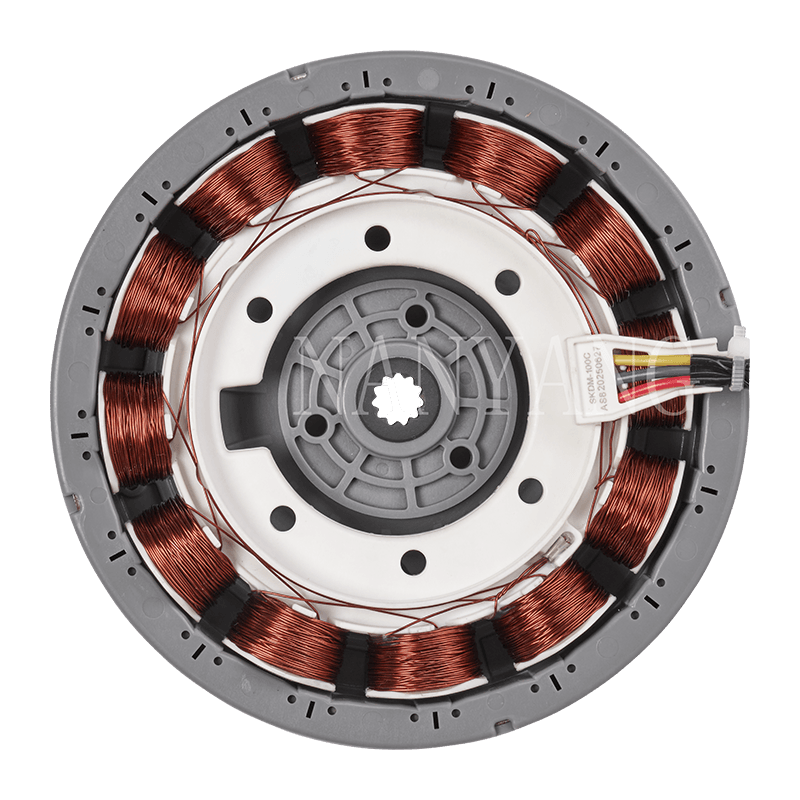

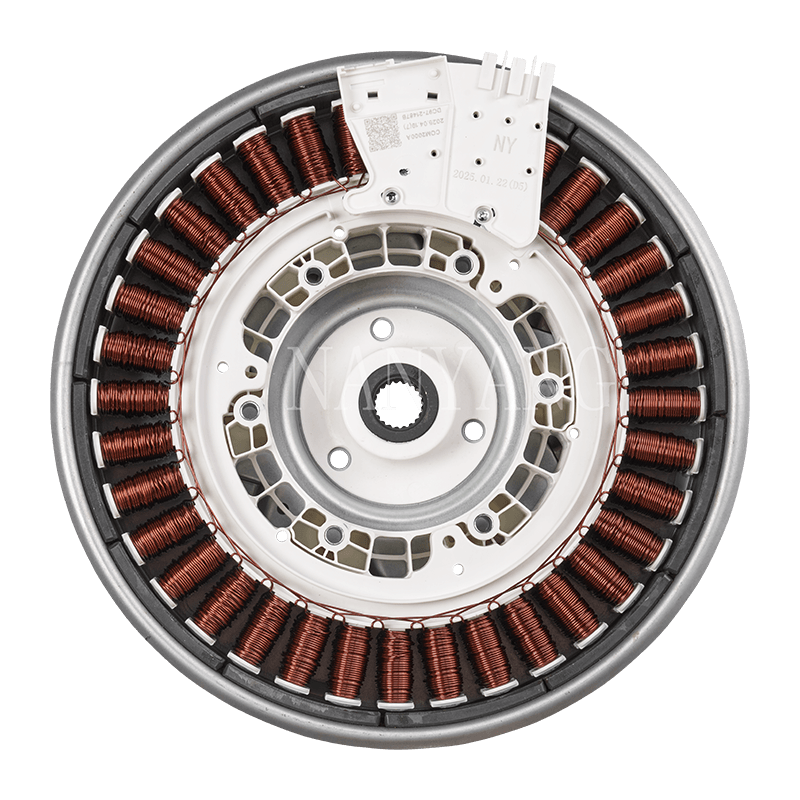

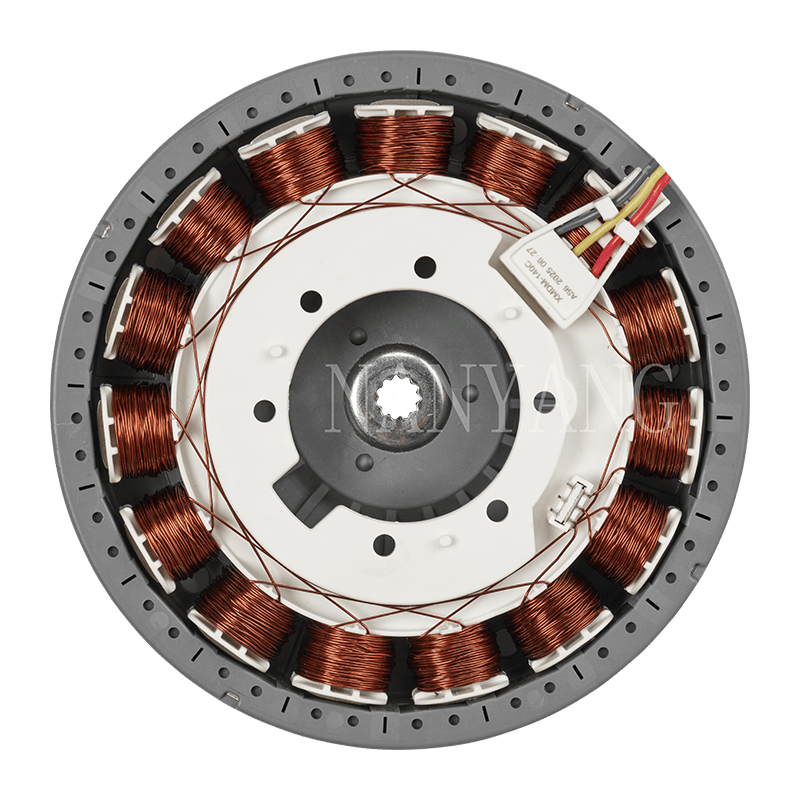

Nanyang's Direct Drive Motor is an ideal outer rotor type BLDC motor,connected to a washing machine tub directly without any belt or pulley.This simplified structure helps running washing machine quiet and reliable.
It is widely used in various transmission machinery industries of washing machines.
| Item | DD Motor | |||
| Driving Mode | Horizontal Direct Drive | |||
| Voltage | 310VDC | |||
| Power | 0~3/4 HP | |||
| Stator Solts | 36S | |||
| Rotor Poles | 48P | |||
| Motor Efficiency | Wash | ≥40% | ||
| Spin | ≥75% | |||
| Torque | Wash | 15.0~50.0Nm | ||
| Spin | 2.5~4.5N.M | |||
| Speed Range | 0~1600Rpm | |||
| Structure | Iron/PP | |||
| Application | 8~25Kg | |||
| Bearing | 6202/6201 | |||
| Max External Dimension | 290.2/297Mm | |||
Nanyang Motor provides low-noise, low-vibration, long lifespan and systematic solutions.
