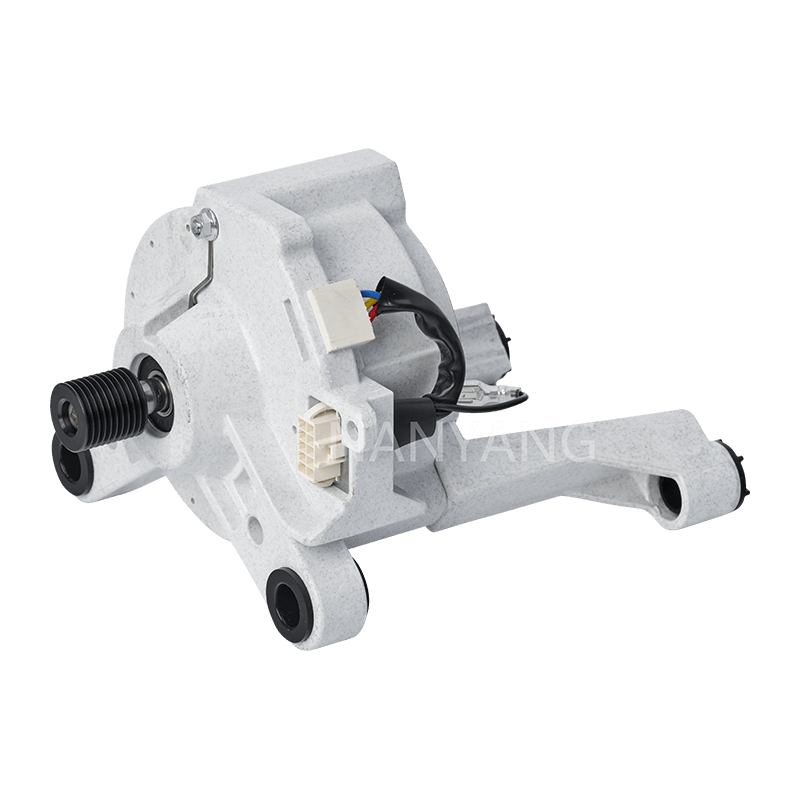

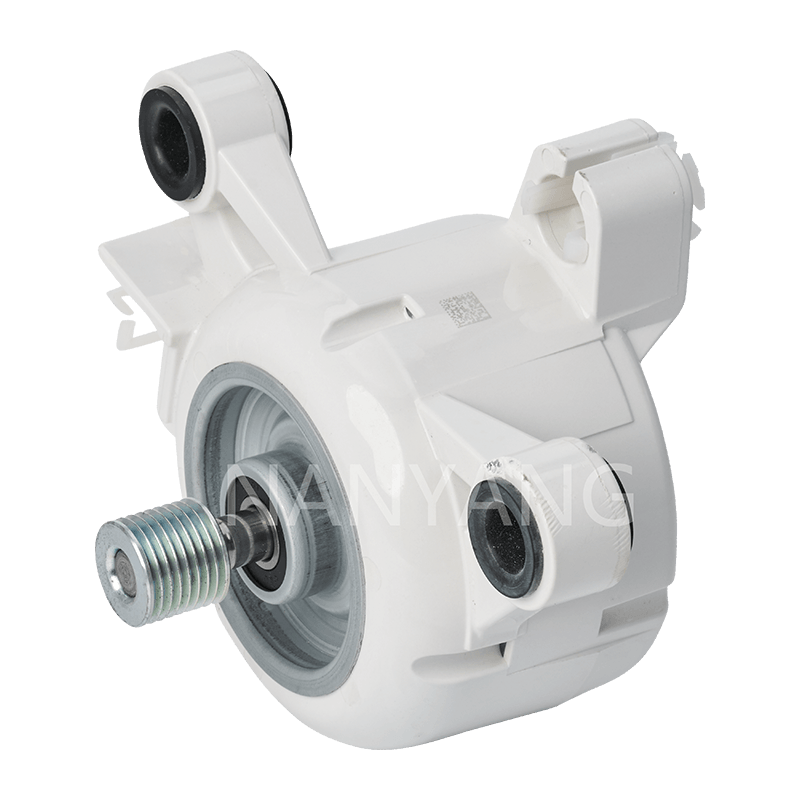

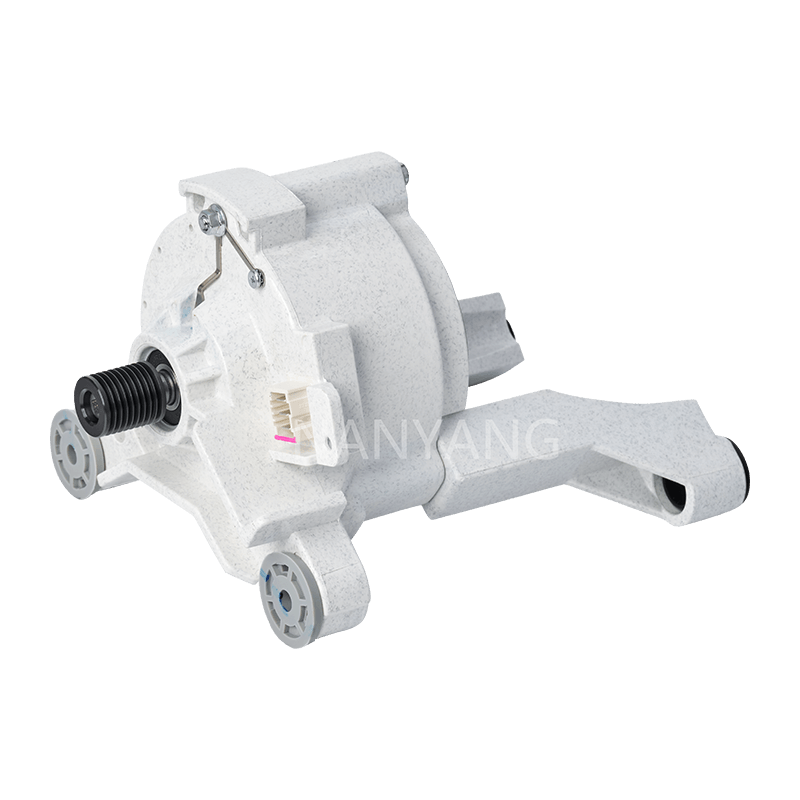

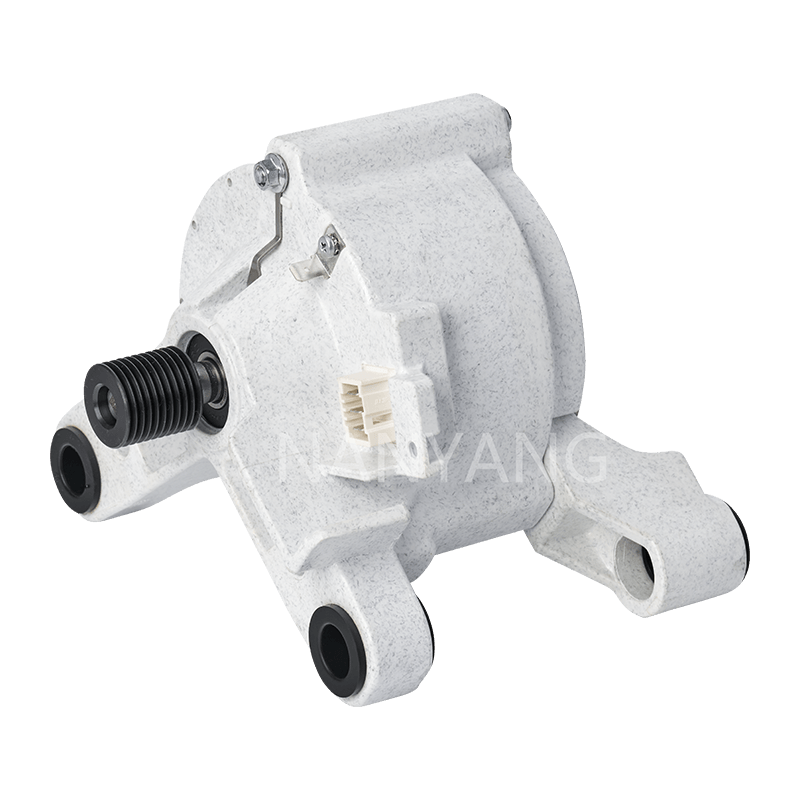

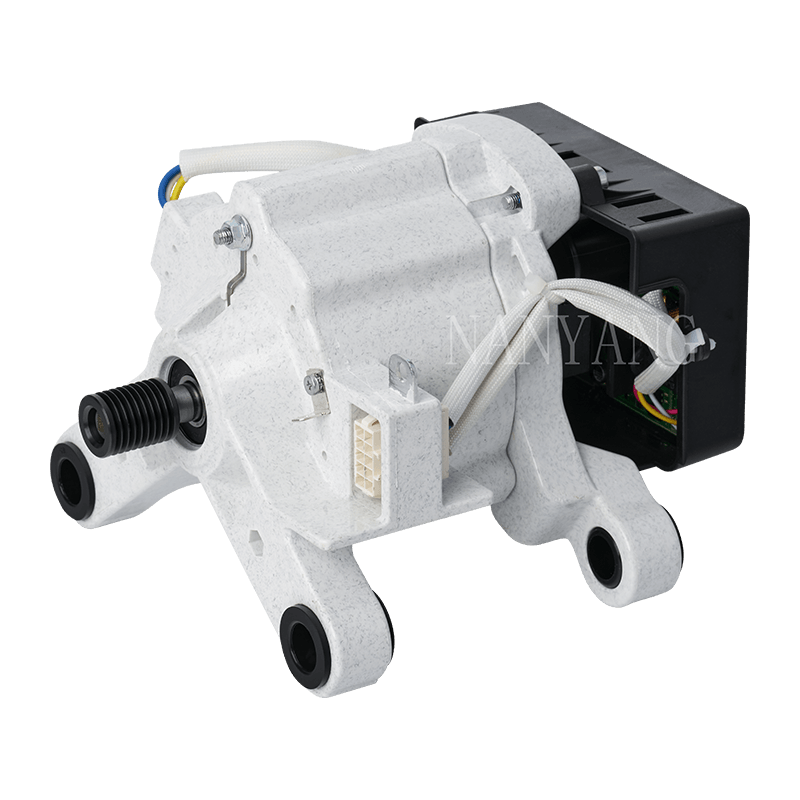

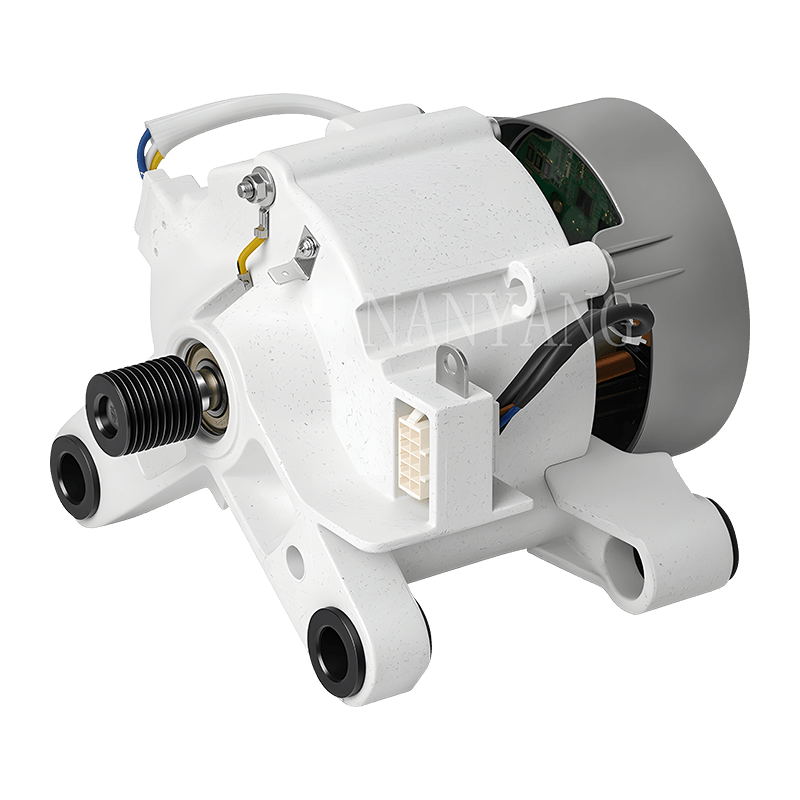

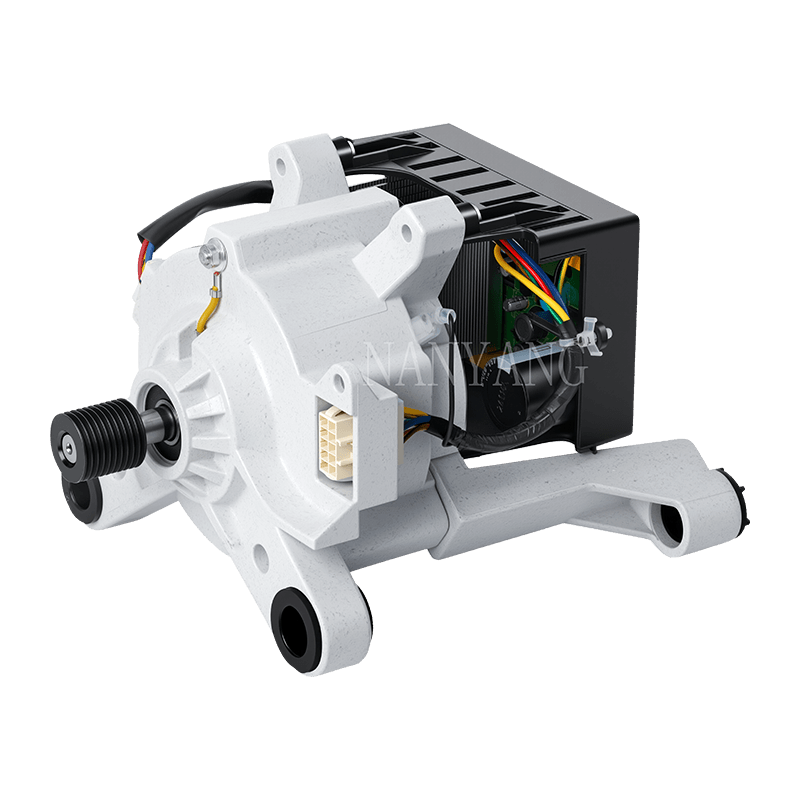

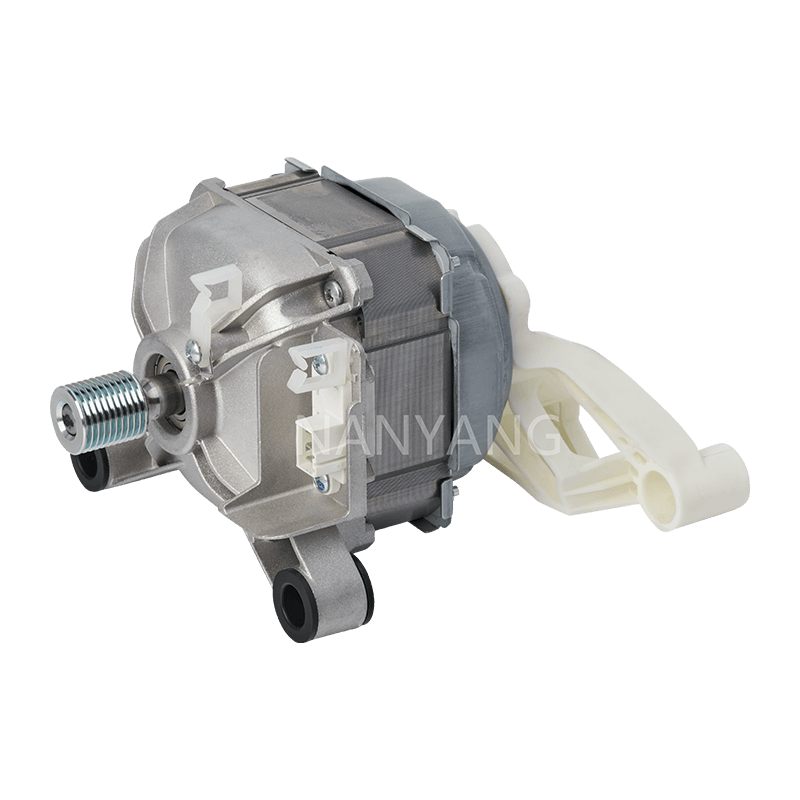

Provide highly efficient BLDC motors and their electrically controlled systematic solutions
Stator integrated BMC structure is simple and reliable 3) Different motor solutions are available for different capacities and designs
It is widely used in various transmission machinery industries of washing machines.
| Item | BLDC Motor | |||||
| Driving Mode | Horizontal direct drive | |||||
| Voltage | 310VDC | |||||
| Power | 0~3/4 HP | |||||
| Stator Solts | 12S | |||||
| Rotor Poles | 8P | |||||
| Motor Efficiency | Wash | ≥65% | ||||
| Spin | ≥75% | |||||
| Torque | Wash | 2.0~3.5Nm | ||||
| Spin | 0.20~0.40N.m | |||||
| Speed Range | 0～17000rpm | |||||

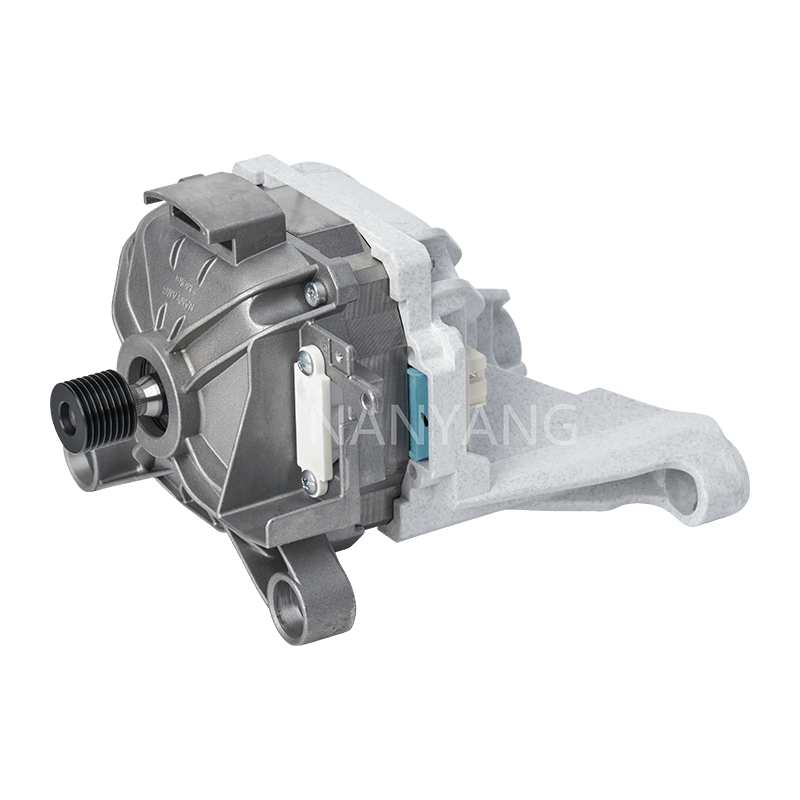

| Structure | BMC/AL+BMC | |||||
| Application | 6~25kg | |||||
| Bearing | 6202/6201 | |||||
Nanyang Motor provides high efficiency, low-noise, low-vibration and systematic solutions.
